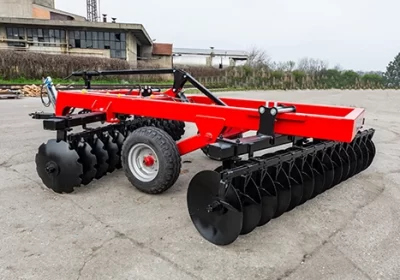

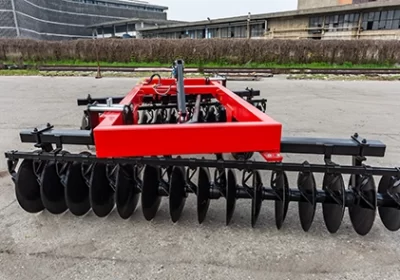

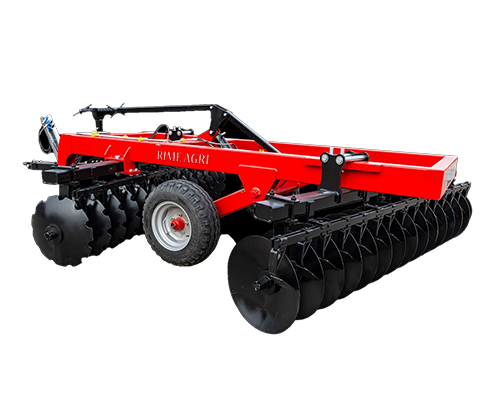

Goble Disc Harrow

See the differeance at First Tillage
It is widely used for tillage, especially for sowing preparation and stubble cultivation. With its combined design, it reduces production costs. The required quality of land cultivation can be achieved if the work is done at a speed of up to 15 km / h under proper soil conditions. The high performance brings low costs and low fuel consumption. The frame of the plate is made of thick-walled box profiles measuring 200 × 100 mm The working range is 2.8 to 3.6 meters with discs with a diameter of 610 mm The spacers between the discs are 230 mm in size and are made of castings or pipes The axles are 40 × 40 mm made of light-drawn steel In each housing, there are two bearings and oil seals, with the possibility of lubrication and change of old grease.The weight of the complete housing is about 30 kg The battery angle can be easily hydraulically adjusted up to a maximum of 22 ° Possibility to adjust the angle of the drawbar Reinforced cleaners can approach discs Easily adjust the uniformity of the front to the rear battery.Good balancing allows for better operation and easier transport Wheels measuring 10.75 × 15.3 Optionally, the disc harrow can be equipped with a rotor, which further grinds the soil and prepares a better sowing bed
