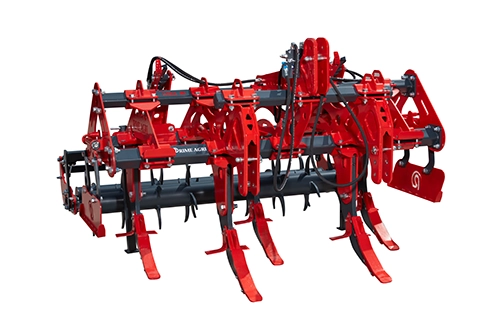

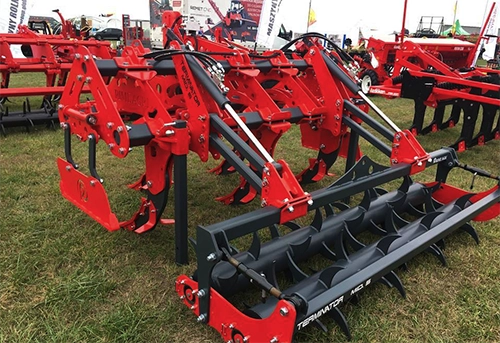

Chisel Plough
Perfect Solution at First Tillage
The high volume of the field traffic in farm machinery, causes soil compaction, hard soil or hardpan, and productivity losses. One of the most important tillage machines in the Rime Agri range is Pro Chisel which is cracking the soil via shanks to increase productivity effectively.
Rime Agri Pro Chisel can be successfully used in stubble-ploughing. Rime Agri Pro Chisel are primary tiller that making ready for secondary tillage by cracking the soil.
Specifications
| Model | Shank Nr | Req Tractor HP | Tilling Depth | Weight (Kg) | Speed (Km/h) | Dimensions (WxLxH)cm |
|---|---|---|---|---|---|---|
|
Model
Standart Type With 5 Shank
|
Shank Nr
5
|
Req Tractor HP
70/130
|
Tilling Depth
35/45cm
|
Weight (Kg)
1200
|
Speed (Km/h)
7-10
|
Dimensions (WxLxH)cm
270x260x159
|
|
Model
Standart Type With 7 Shank
|
Shank Nr
7
|
Req Tractor HP
100/160
|
Tilling Depth
35/45cm
|
Weight (Kg)
1500
|
Speed (Km/h)
7-10
|
Dimensions (WxLxH)cm
270x350x159
|
|
Model
Standart Type With 9 Shank
|
Shank Nr
9
|
Req Tractor HP
150/200
|
Tilling Depth
35/45cm
|
Weight (Kg)
1800
|
Speed (Km/h)
7-10
|
Dimensions (WxLxH)cm
270x440x159
|
|
Model
Medium Type With 5 Shank
|
Shank Nr
5
|
Req Tractor HP
110/150
|
Tilling Depth
35/55cm
|
Weight (Kg)
1500
|
Speed (Km/h)
7-10
|
Dimensions (WxLxH)cm
270x260x159
|
|
Model
Medium Type With 7 Shank
|
Shank Nr
7
|
Req Tractor HP
150/200
|
Tilling Depth
35/55cm
|
Weight (Kg)
1900
|
Speed (Km/h)
7-10
|
Dimensions (WxLxH)cm
270x350x159
|
|
Model
Medium Type With 9 Shank
|
Shank Nr
9
|
Req Tractor HP
190/240
|
Tilling Depth
35/55cm
|
Weight (Kg)
2300
|
Speed (Km/h)
7-10
|
Dimensions (WxLxH)cm
270x440x159
|
|
Model
Heavy Type With 5 Shank
|
Shank Nr
5
|
Req Tractor HP
150/200
|
Tilling Depth
35/65cm
|
Weight (Kg)
2250
|
Speed (Km/h)
7-10
|
Dimensions (WxLxH)cm
300x260x182
|
|
Model
Heavy Type With 7 Shank
|
Shank Nr
7
|
Req Tractor HP
190/250
|
Tilling Depth
35/65cm
|
Weight (Kg)
2720
|
Speed (Km/h)
7-10
|
Dimensions (WxLxH)cm
300x350x182
|
|
Model
Heavy Type With 9 Shank
|
Shank Nr
9
|
Req Tractor HP
220/330
|
Tilling Depth
35/65cm
|
Weight (Kg)
3250
|
Speed (Km/h)
7-10
|
Dimensions (WxLxH)cm
300x440x182
|
